Description
New – Open box
Excellent, Brand New, Never Used.
Excellent, Brand New, Never Used.

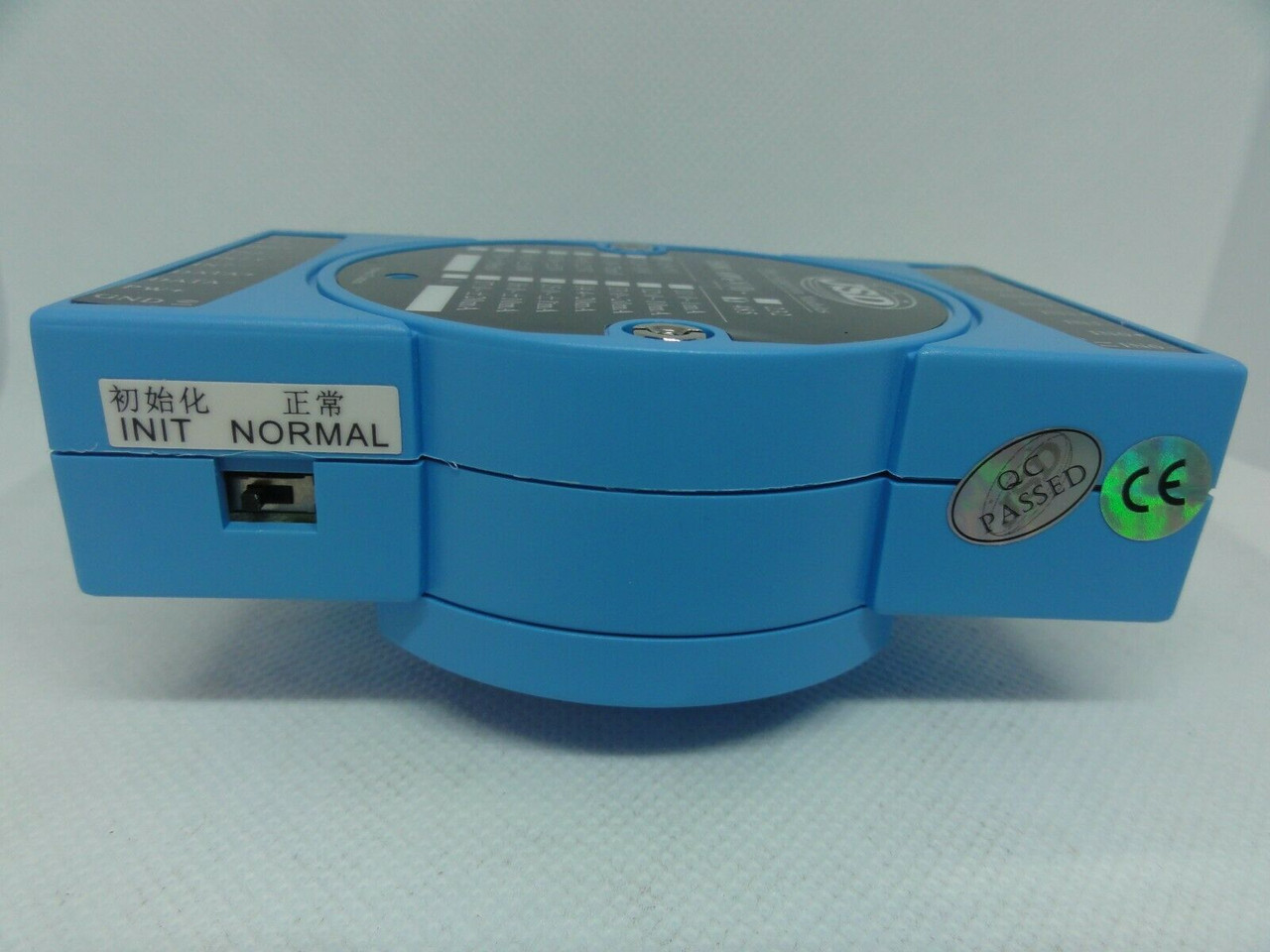

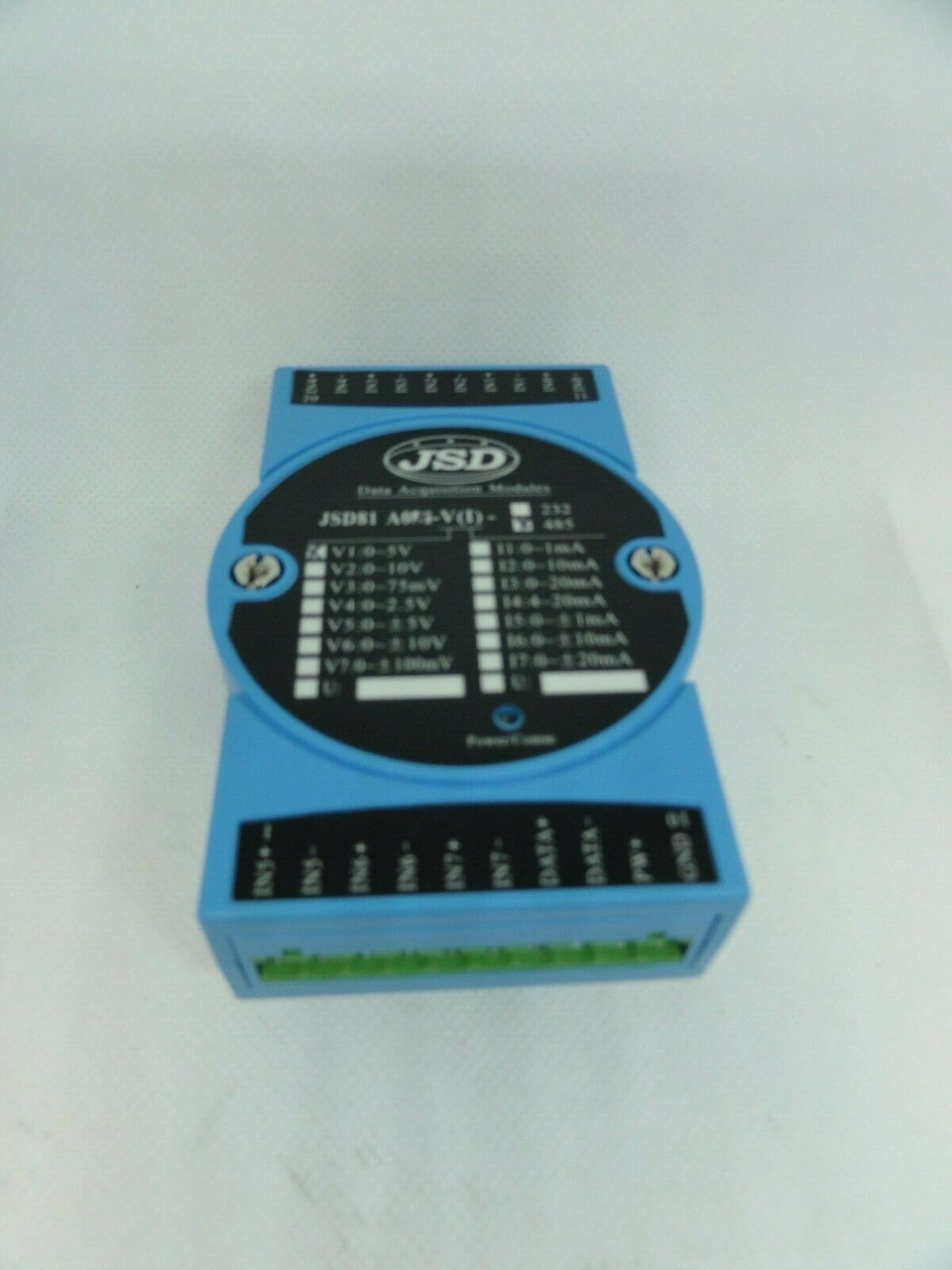

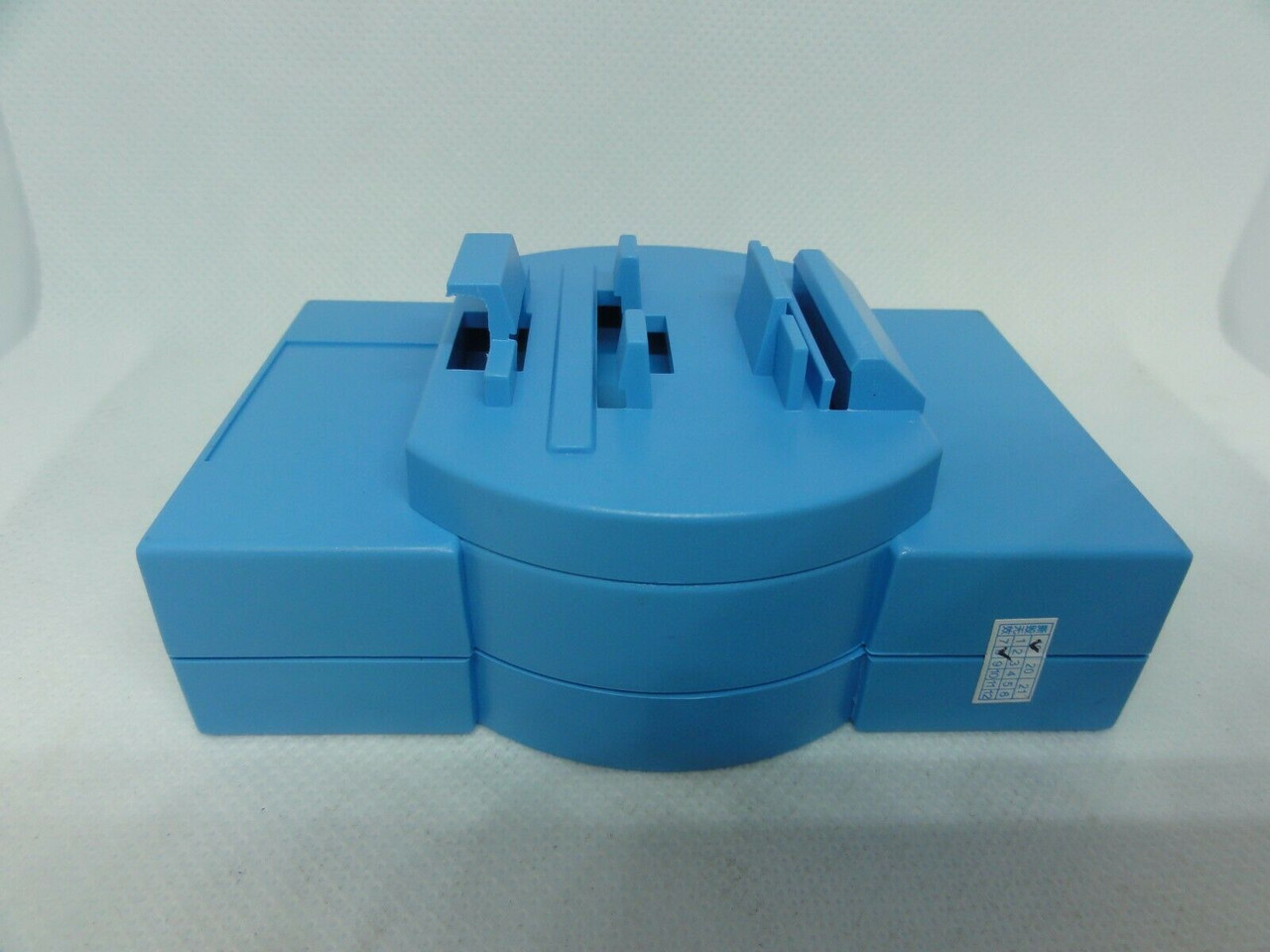

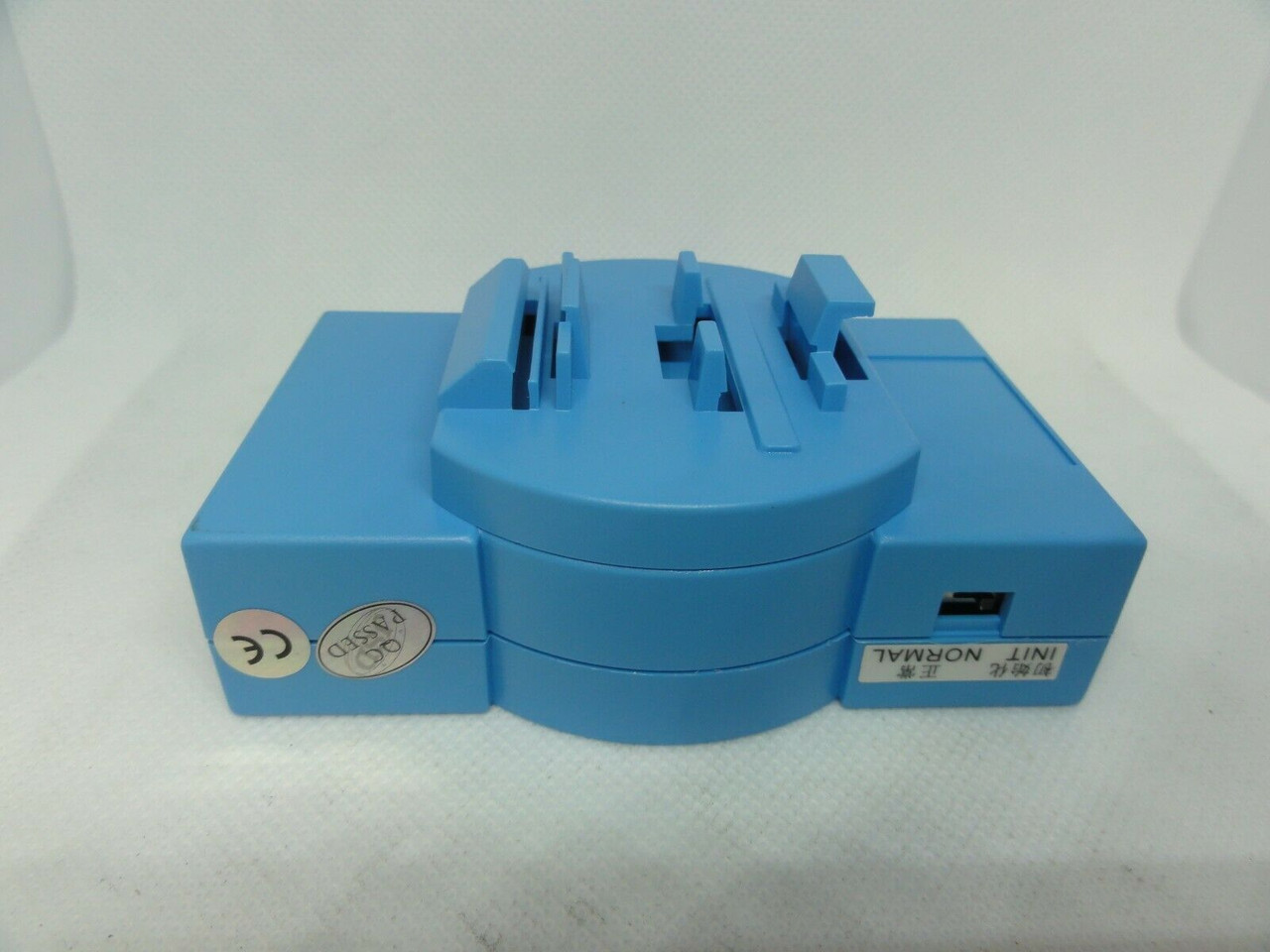

Advantech JSD JSD81 A08-V(I)-485 Data Acquisition Module *NEW*

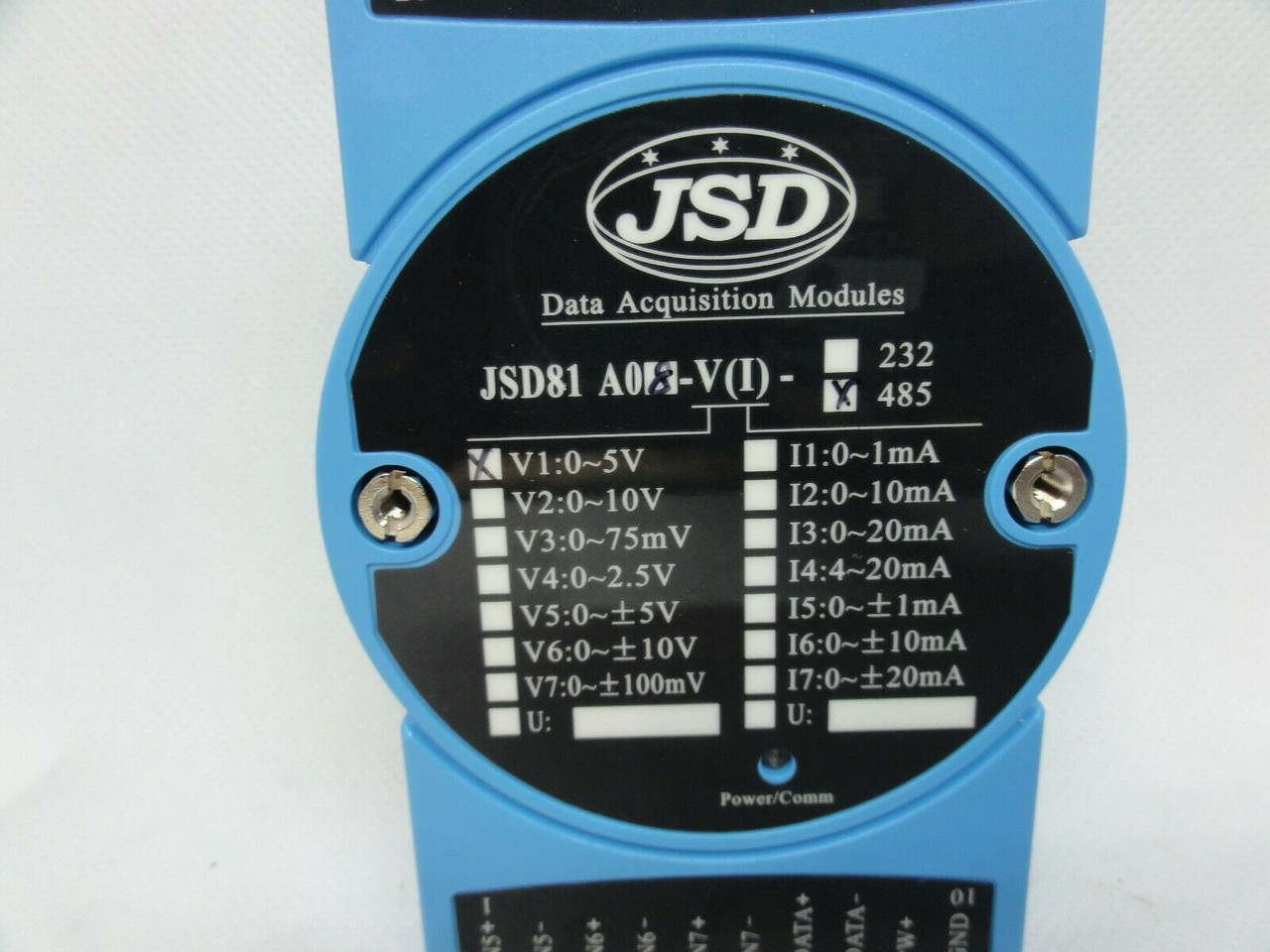

JSD81 A0□- V(I)□ - □Communication interface
Channel code
Input Voltage or Current Signal code
V1:0-5V485: Output is RS-485 interface
232: Output is RS-232 interface
V2:0-10V
V3:0-75mV
V4:0-2.5V
V5:0-±5V
V6:0-±10V
V7:0-±100mV
Vud:User-defined
Sample 1: model: JSD81 A08-I4-485 8-CH 4-20mA input signal,output is RS485 interface
Sample 2: model: JSD81 A08-V1-232 8-CH 0-5V input signal,output is RS232 interface
Sample 3: model: JSD81 A08-V2-485 8-CH 0-10V input signal,output is RS232 interface
8-ch4-20mAto RS485/232 converter features:
● 8-CH analog signal acquisition/ isolation ,RS-485/232 output
● 24-bit AD converter, testing accuracy>0.05%
● Can Program and calibrate modules accuracy via RS-485/232 interface
● Input/output isolation: 3000VDC
● Wide power supply: 8~32VDC
● High reliability, easy programming and installation.
● Can program setting module address, baud rate
● Supports Modbus RTU protocol
● Low cost, small size ,SMD chip process design
